BAUER VERTICUS | VAC18H-E3 | Three Phase | 6000PSI
3, 4 AND 5-STAGE ENCLOSED HIGH PRESSURE BREATHING AIR COMPRESSORS

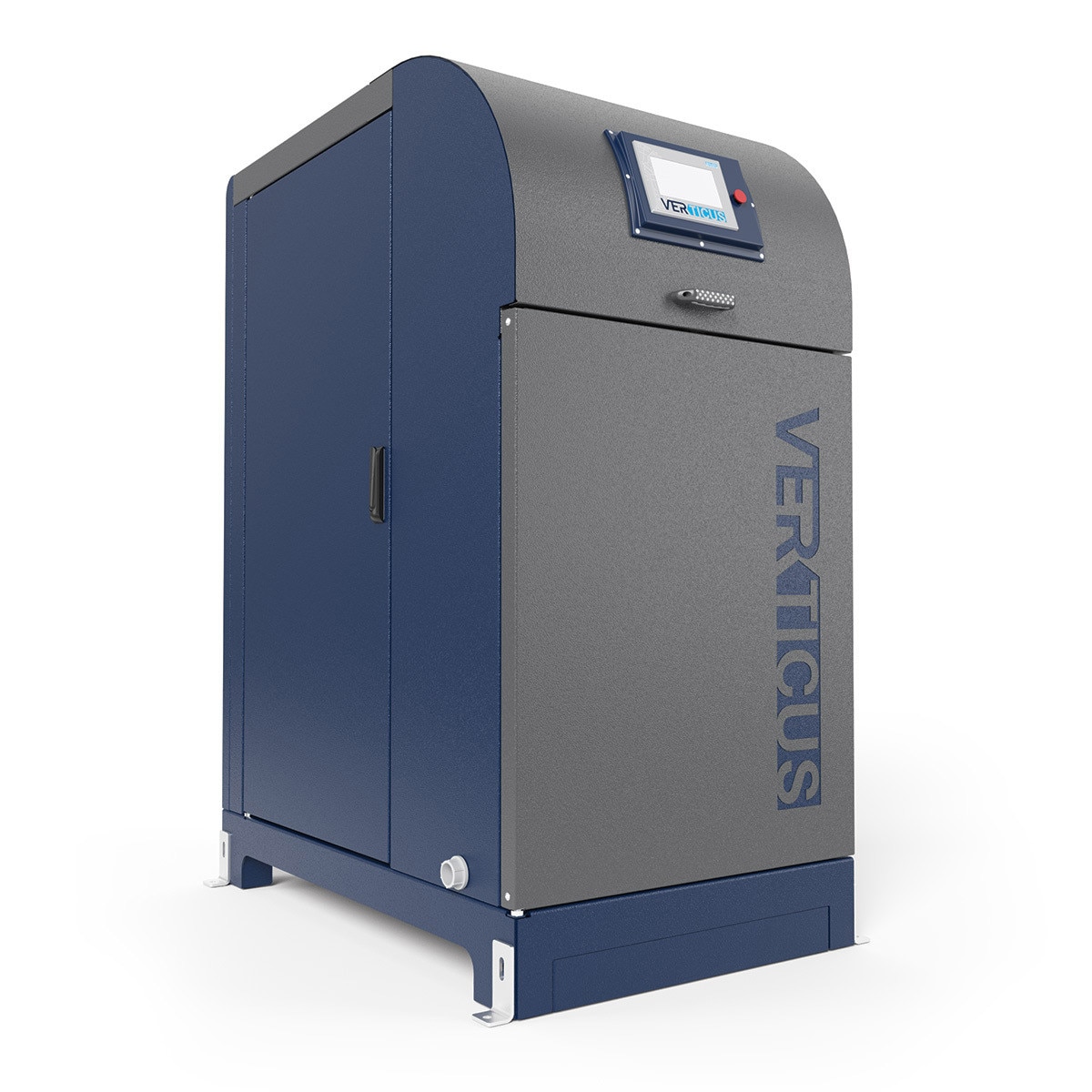

The days of “Breadbox” designed compressor packages are over! Step up to the BAUER VERTICUS. The updated sound attenuated cabinet is equipped with a unique aesthetically pleasing horizontally hinged, and gas shock supported, operations panel, assuring direct and easy access to the drive belts. Vertically hinged and lift-off side maintenance access doors incorporating fast pin technology make removal of the doors a snap – no hand tools are required! The rear panel incorporates integral handles and tabbed lift off design. The front vertically hinged access door is affixed with a hex keyed latch to eliminate the accidental opening of the door while the system is operating. Sound attenuation has been incorporated on every possible panel to provide a nice and quiet operating level of approximately 72 dB (within one-meter). One package size accommodates BAUER high pressure aircooled compressors from 5 to 20 Hp motors. Our new, larger, 7” HMI enhances monitoring of system functions.
BAUER VERTICUS; VAC18H-E3; 6000PSI; Three Phase; 18 SCFM; 15HP; 11KW
STANDARD SCOPE OF SUPPLY:
- BAUER breathing air purification system with SECURUS
- BAUER PLC based controller with 7” color HMI touchscreen display
- NEMA 4 rated electrical enclosure with UL® listed control panel
- Compressor low oil pressure and high temperature safety shutdowns
- Emergency stop push button and automatic start/stop control
- Zero loss automatic condensate drain system with non-corrosive condensate reservoir and integrated float sensor and automatic "Full” indication and compressor shutdown
- Interstage pressure gauges (locally mounted)
- Vertically hinged front operations panel and lift-off side maintenance access doors
- Inlet filter maintenance indicator
- Unique hinged front operations panel
SYSTEM FOOTPRINT:
VERTICUS:
VAC5 - VAC26
DIMENSIONS L X W X H inches (mm)
- 55” x 35” x 70” (1397mm x 737mm x 1778mm)
WEIGHT pounds (kg)
- 1000 - 1400 lb (453.6 - 635 kg)
Model | Charging Rate1 | Number of Stages | Motor | FAD2 | RPM | Purification System | ||
---|---|---|---|---|---|---|---|---|
SCFM | L/MIn | HP | KW | |||||
5000 PSIG (345 Bar) | ||||||||
VAC8-E1/E3 | 8.4 | 238 | 3 | 7.5 | 5.6 | 7 | 1250 | P5 SECURUS |
VAC20-E3 | 21 | 595 | 4 | 15 | 11 | 17.5 | 1300 | P5 SECURUS |
VAC23-E3 | 26.4 | 748 | 4 | 20 | 15 | 22 | 1350 | P5 SECURUS |
VAC42-E3³ | 42 | 1190 | 4 | 30 | 22 | 35 | 1300 | P5 SECURUS |
6000 PSIG (414 Bar) | ||||||||
VAC4-E1/E3 | 5 | 142 | 3 | 5 | 3.7 | 4 | 1050 | P2 SECURUS |
VAC10-E1/E3 | 9.7 | 275 | 4 | 7.5 | 5.6 | 8.1 | 1180 | P2 SECURUS |
VAC13-E1/E3 | 13 | 368 | 4 | 10 | 7.5 | 10.8 | 1420 | P2 SECURUS |
VAC18-E3 | 18 | 510 | 4 | 15 | 11 | 15 | 1325 | P5 SECURUS |
VAC25-E3 | 25.2 | 714 | 5 | 20 | 15 | 21 | 1300 | P5 SECURUS |
VAC35-E3³ | 35.9 | 1017 | 4 | 30 | 22 | 29.8 | 1200 | P10 SECURUS |
1) Based on recharging an 80 cubic foot tank from 500 to 3000 psig.
2) Compressor capacity referenced to standard inlet conditions.
E1= Single phase electric, 230 VAC/60Hz.E3= Three Phase Electric, 208/230/460 VAC/60Hz. Other voltages available on request. Dimensions and weights are approximate and are subject to chance.
