H35V-E3 BAUER Open Vertical | H35V-E3 | Three Phase | 6000PSI

(0)No Reviews yet
CALL FOR PRICE OR REQUEST QUOTE
SKU: H35V-E3
Bauer Open Design packages in Horizontal or Vertical Compressor configurations combines the compressor and air purification systems in a space saving design. These compressors set the standard for larger capacity air requirements.

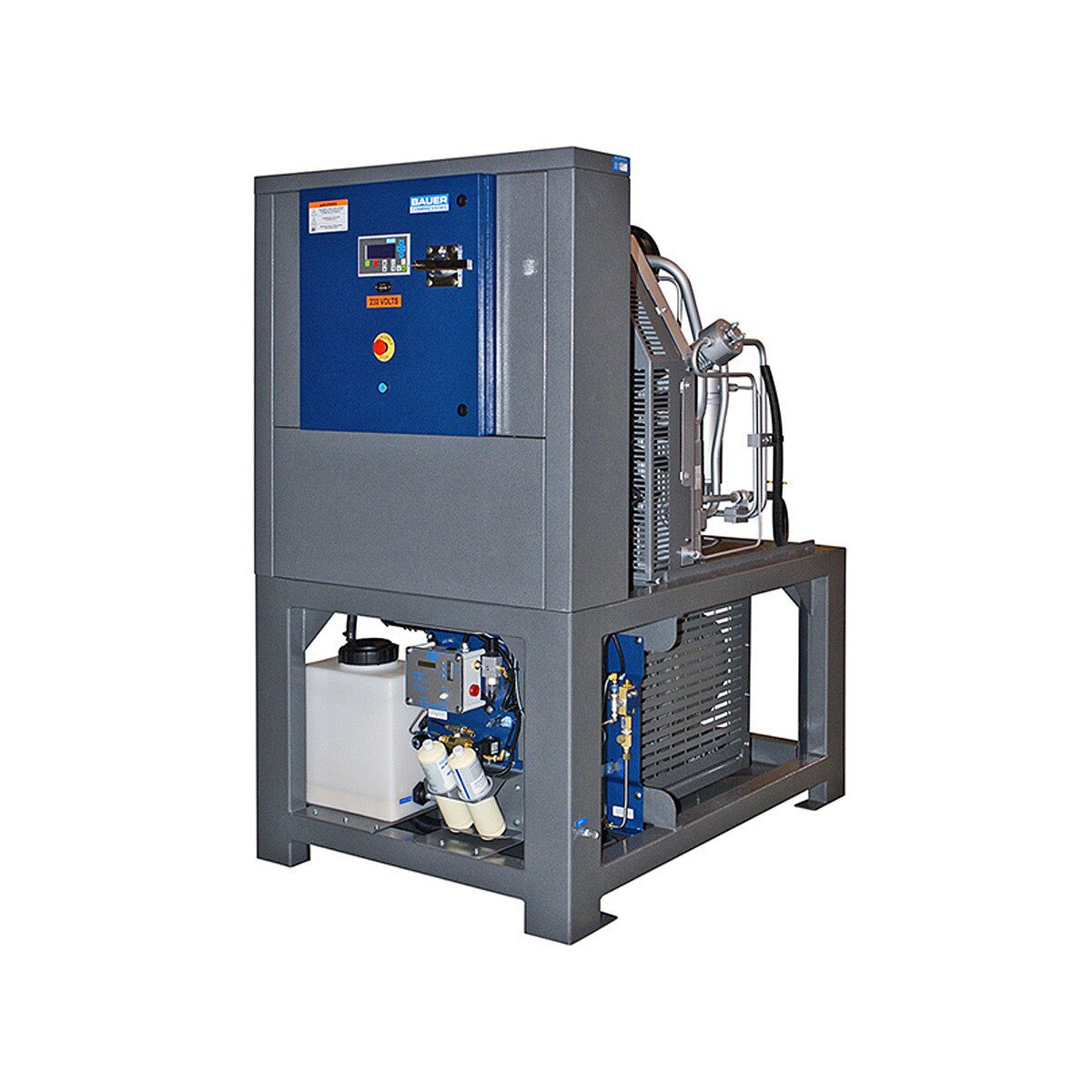

BAUER Open Vertical Compressor; H35V-E3; 6000PSI; Three Phase; 35.9 SCFM; 30HP; 22KW

STANDARD SCOPE OF SUPPLY:

  • BAUER Breathing Air Purification System
  • BAUER PLC based controller with 4 line text display
  • NEMA 4 rated electrical enclosure with UL® listed control panel
  • Compressor low oil pressure and high temperature safety shutdowns
  • Emergency stop push button
  • Automatic condensate drain system with non-corrosive condensate reservoir and integrated float switch
  • Automatic "Full" indication and compressor shutdown
  • Belt guard designed to meet OSHA guidelines
  • Soft start, isolation contractor, and circuit breaker providing instantaneous short circuit protection
SYSTEM FOOTPRINT:
DIMENSIONS L X W X H inches (mm)
  • VERTICAL 42 x 78 x 74 (1067 x 1981 x 1880)
  • HORIZONTAL 114 x 82 x 66 (2896 x 2083 x 1676)
WEIGHT pounds (kg)
  • VERTICAL 1200-2800 (544-1270)
  • HORIZONTAL 1200-5000 (544-2268)
