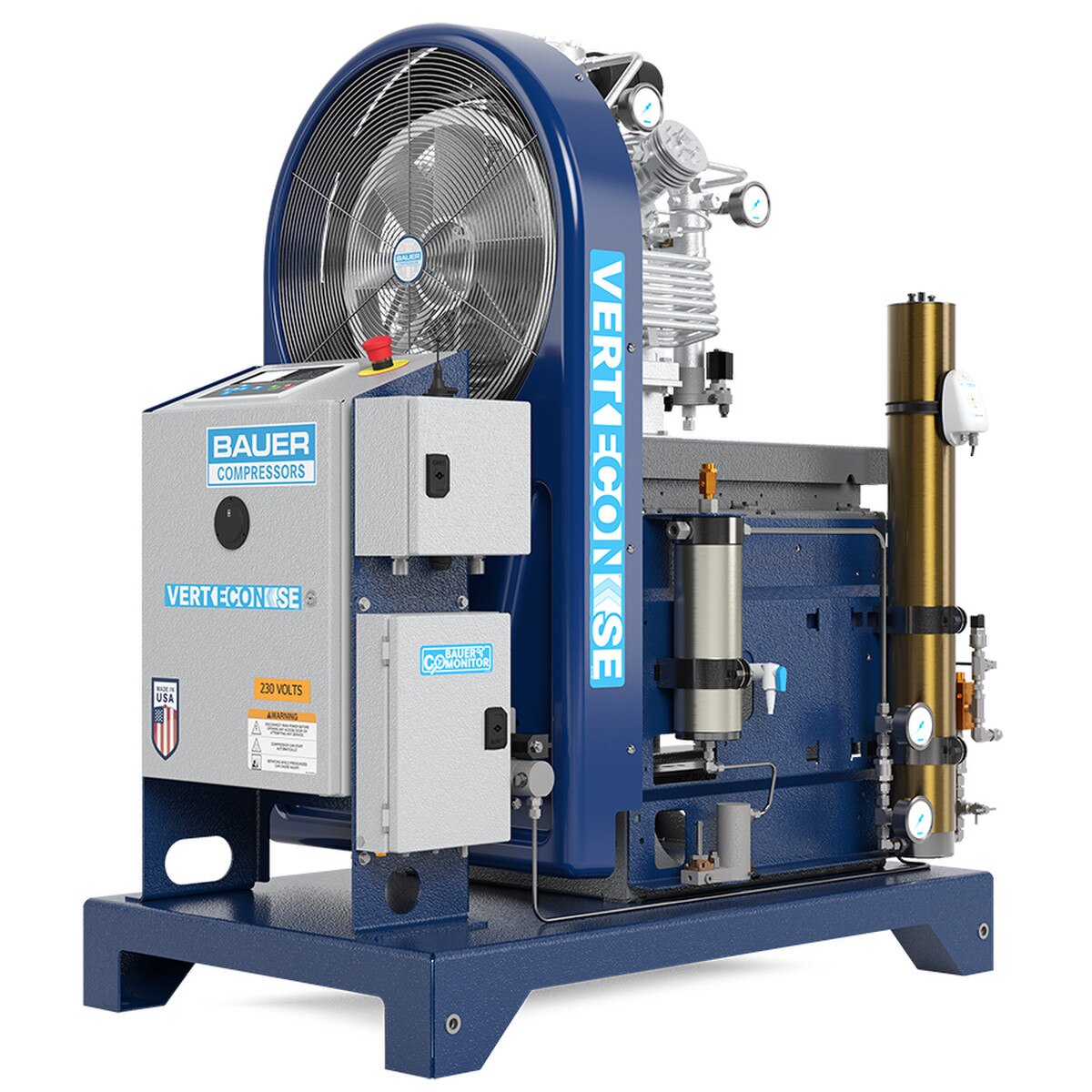

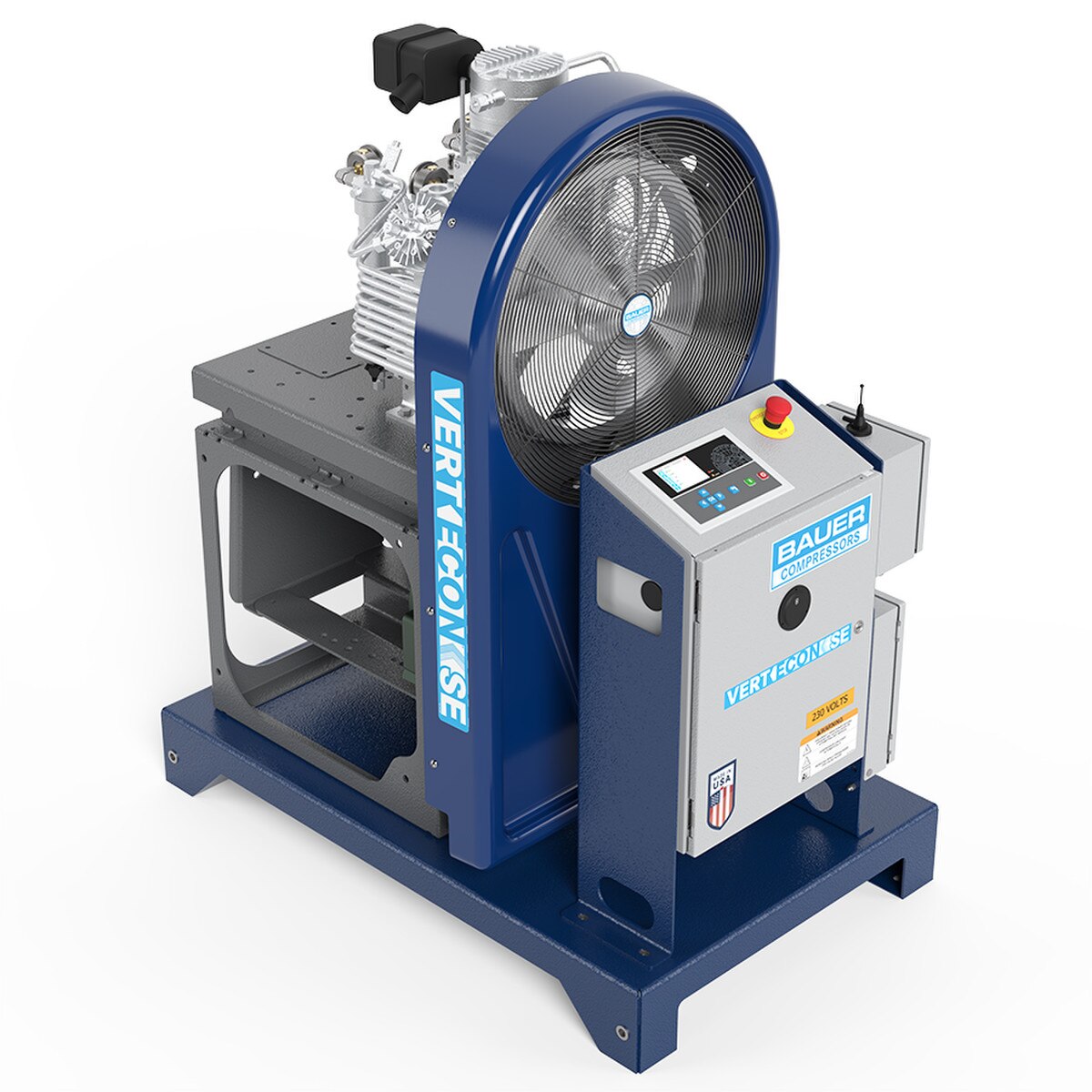

BAUER VERTECON SE / 13-E1| Single Phase | 6000PSI
Bauer Open Vertical Compressor SE Compressor
-13 scfm, 6000 psig, 4-Stage Compressor
-10 hp, Single Phase Motor
-67,000 cu ft Capacity Purifier, Integrated Purification System That Meets NFPA 1989 Requirements for Firefighting and CGA Grade E Air For SCUBA
-Open Vertical Configuration Made of Formed Sheet and Plate Goods Provides a Firm Foundation for All Pressure Bearing Components
-Fully Integrated Bauer CO Monitoring System
-BAUER B-CONTROL HMI touchscreen display
-NEMA 4 Rated Electrical Enclosure with UL® Listed Control Panel
-All Wiring Harnesses incorporated Within a Corrugated Loom with Number Coding for Easy System Diagnosis
-Emergency Stop Push Button
-Automatic Condensate Drain System
-Compressor On/Off, Final Pressure, Oil Pressure, High Temperature Shutdown
-P2 B-Securus Purification System
BAUER VERTECON / 13-E1, 13 CFM 6KPSI 10HP; Single Phase.
AUTO CONDENSATE DRAIN SYSTEM
-Timed automatic drain, includes silencer and collection reservoir and user display indicator if "full".
MTD INTERSTAGE PRESSURE GAUGES
SECURUS PURIFIER MONITOR SYSTEM
- Built-in, continuous monitor for purification cartridges.
- Includes user display indicators for "safe", "high moisture", "cartridges expired" and "contact fault".
- Automatic system shutdown for faults; fail-safe (can not be over-ridden); no warm up required.
- Can extend the purifier cartridge's useable life.
1) Based on recharging an 80 cubic foot tank from 500 to 3000 psig.
2) Compressor capacity referenced to standard inlet conditions.
E1= Single phase electric, 230 VAC/60 Hz.
E3= Three phase electric, 208 VAC/60 Hz.
Dimensions and weight are approximate and are subject to change.
