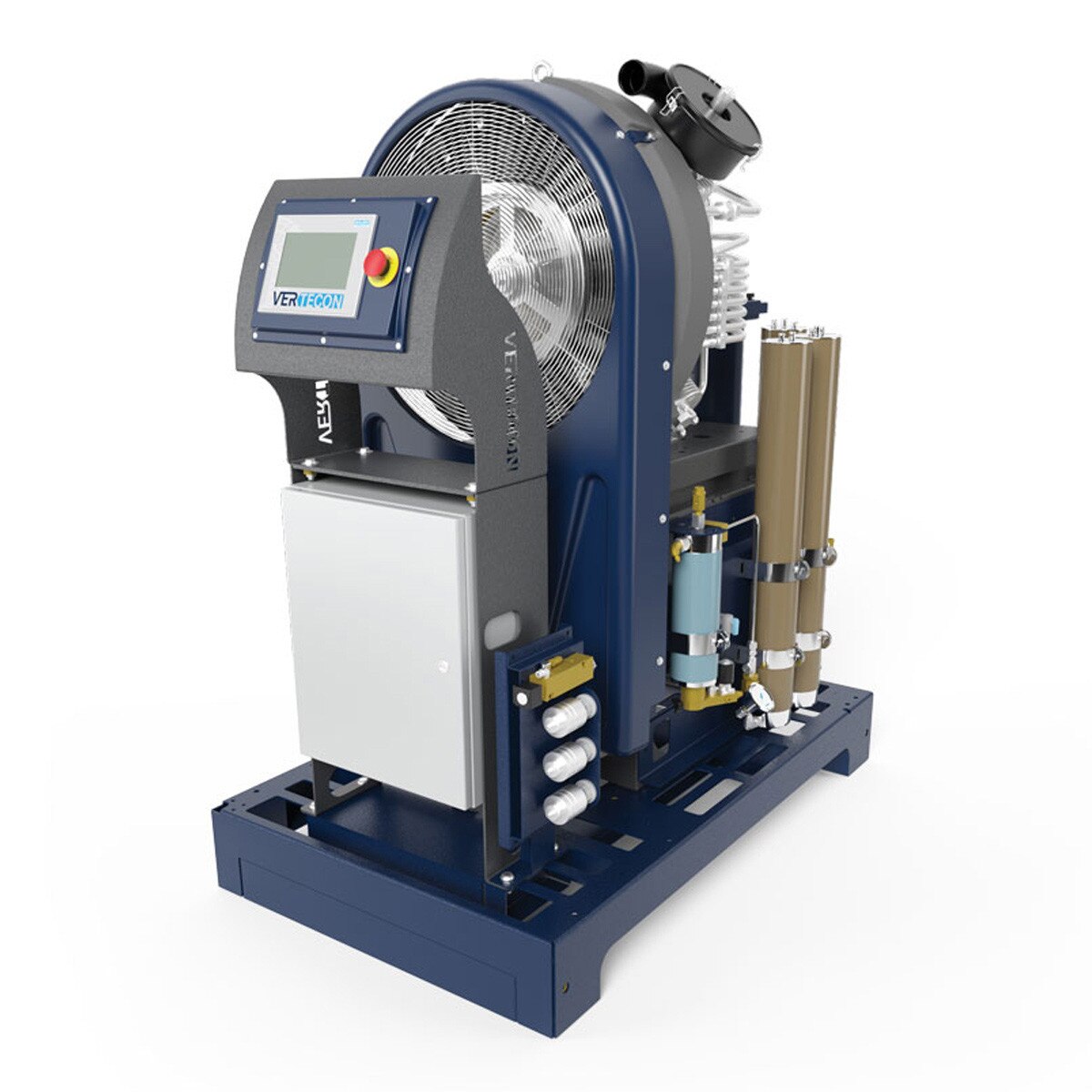

BAUER VERTECON | VEC10-E3 | Three Phase | 6000PSI

(0) No Reviews yet
$26,325.00
SKU: VEC10-E3

3, 4 AND 5-STAGE OPEN HIGH PRESSURE BREATHING AIR COMPRESSORS

BAUER Compressor’s VERTECON series of high pressure breathing air compressor systems have been an industry leader for many years. An economical design featuring the latest BAUER technological enhancements and unsurpassed maintenance accessibility are incorporated within the simplistic platform. The series now features an integral base which eliminates the guess work of product placement, insuring the system has been installed correctly for system ventilation and maintenance accessibility. With the advent of the integral base the compressor package also has the ability of having a sound attenuated enclosure optionally installed at a later date. A refreshed HMI operations panel and electrical control system allow you to tailor the system to your specific requirements.

When simple is what you want look to BAUER.

BAUER VERTECON; VEC10-E3; 6000PSI; Three Phase; 9.7 SCFM; 7.5HP; 5.6KW

STANDARD SCOPE OF SUPPLY:

  • BAUER breathing air purification system
  • Open vertical cabinet made of formed sheet and plate goods provide a firm foundation for all pressure bearing components
  • Modern design with unsurpassed maintenance accessibility (no hand tools are required for normal maintenance checks and fluid level confirmation)
  • BAUER PLC based controller with 7” color HMI touchscreen display
  • Belt adjustment tool
  • NEMA 4 rated electrical enclosure with UL® listed control panel
  • All wiring harnesses incorporated within a corrugated loom with number coding for easy system diagnosis
  • Emergency stop push button
  • .049 wall thickness stainless steel tubing throughout, no cheap plastic tubing
  • Rugged powder coat finish
  • Zero loss automatic condensate drain system
  • Interstage pressure gauges (locally mounted)
  • Compressor on/off, final pressure, oil pressure and high temperature shutdown
  • Motor overload indication
  • Final separator counter with shutdown and operator indication
  • Unique integrated positioning base which ensures correct installation everytime
SYSTEM FOOTPRINT:

VEC05 - VEC13:

DIMENSIONS L X W X H inches (mm)
  • 54” x 34” x 56” (1372.6mm x 863.6mm x 1422.4mm)
WEIGHT pounds (kg)
  • 800 - 900 lb (363 - 408.2 kg)

VEC18 - VEC26:

DIMENSIONS L X W X H inches (mm)
  • 54” x 34” x 63” (1372.6mm x 863.6mm x 1600.2mm)
WEIGHT pounds (kg)
  • 1200 - 1300 lb (544.3 - 589.7 kg)
VERTECON®
Technical Data
ModelCharging Rate1Number of StagesMotorFAD2RPMPurification System
 SCFML/MIn HPKW
5000 PSIG (345 Bar)
VTC08-E1/E38.423837.55.671250P31
VTC20-E3215954151117.51300P5
VTC26-E326.474842015221350P5
6000 PSIG (414 Bar)
VTC05-E1/E35142353.741050P2
VTC10-E1/E39.727547.55.68.11180P2
VTC13-E1/E3133684107.510.81420P2
VTC18-E31851041511151325P5
VTC25-E325.271452015211300P5

1) Based on rechargin an 80 cubic foot tank from 500 to 3000 psig.
2) Compressor capacity referenced to standard inlet conditions.
Image shown with additional accessories. Dimensions and weight are approximate and are subject to change.
