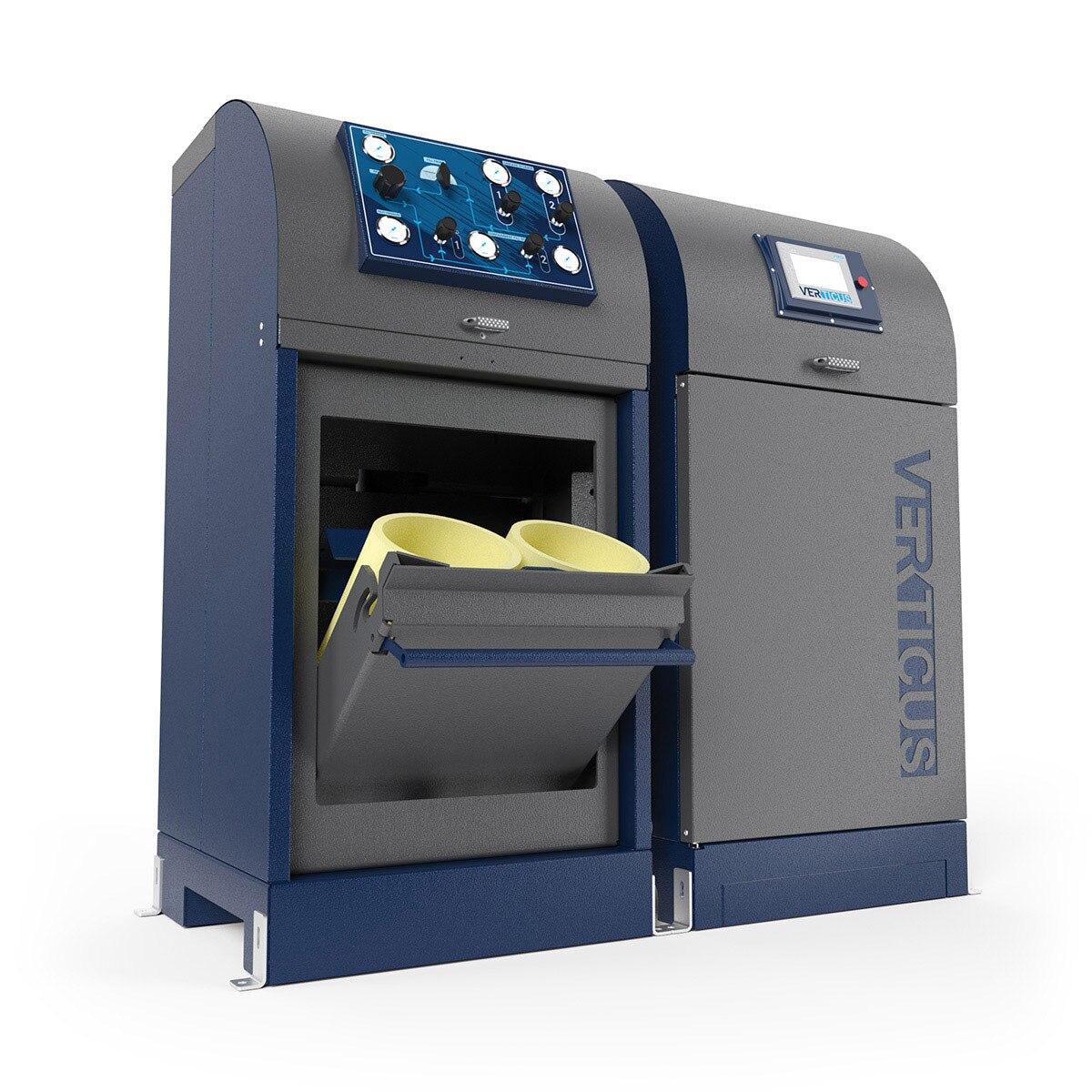

BAUER VERTICUS PLUS | VT-P-10H-E1 | Single Phase | 6000PSI

(0)No Reviews yet
CALL FOR PRICE OR REQUEST QUOTE
SKU: VT-P-10H-E1

3 AND 4-STAGE MULTI-FUNCTIONAL HIGH PRESSURE BREATHING AIR COMPRESSORS

The same package amenities found in the VERTICUS high pressure breathing air compressor system, plus a free standing aesthetically pleasing Multi-functional fill station module are combined to create the BAUER VERTICUS PLUS. Bauer’s performance proven CFS5.5-2S NFPA compliant containment fill station; two (2) bank dual function cascade controls; integral air storage rack with two (2) UN code air storage cylinders; 3-way selector valve to select either air from the compressor or on-board air storage system all come together creating the ultimate fill station. Install the two (2) modules side by side as an All-In-One configuration or apart based on the installation site specifics. Flexibility is the key, look to BAUER to unlock the possibilities.

BAUER VERTICUS PLUS; VT-P-10H-E1; 6000PSI; Single Phase; 9.7 SCFM; 7.5HP; 5.6KW

STANDARD SCOPE OF SUPPLY - COMPRESSOR MODULE:

  • BAUER breathing air purification system with SECURUS
  • BAUER PLC based controller with 7” color HMI touchscreen display
  • NEMA 4 rated electrical enclosure with UL® listed control panel
  • Compressor low oil pressure and high temperature safety shutdowns
  • Emergency stop push button and automatic start/stop control
  • Zero loss automatic condensate drain system with non-corrosiveVcondensate reservoir and integrated float sensor and automatic “Full” indication and compressor shutdown
  • Interstage pressure gauges (locally mounted)
  • Vertically hinged front operations panel and lift-off side maintenance access doors
  • Inlet filter maintenance indicator
  • Unique hinged front operations panel
STANDARD SCOPE OF SUPPLY - FILL STATION MODULE:
  • Dual function cascade controls
  • Two (2) UN code stamped air cylinders installed in an integral rack
  • 3-way selector valve
  • NFPA 1901 2016 edition compliant 2 position containment fill station accommodates SCBA or SCUBA cylinders up to 31” overall length
  • Aestetically pleasing cabinetry
  • Will work with any brand compressor
  • Packaged together

SYSTEM FOOTPRINT

VERTICUS COMPRESSOR MODULE:

DIMENSIONS L X W X H inches (mm)
  • 55” x 35” x 70” (1397mm x 737mm x 1778mm)


FILL STATION MODULE:

DIMENSIONS L X W X H inches (mm)
  • 35” x 37” x 70” (737mm x 940mm x 1778mm)
WEIGHT pounds (kg)
  • 1200 - 1600 lb (544 - 726 kg)
VERTICUSPLUS
Technical Data
ModelCharging Rate1Number of StagesMotorFAD2RPMPurification System
 SCFML/MIn HPKW
5000 PSIG (345 Bar)
VT-P/8-E1/E38.423837.55.671250P2 SECURUS
6000 PSIG (414 Bar)
VT-P/5-E1/E35142353.741050P2 SECURUS
VT-P/10-E1/E39.727547.55.68.11180P2 SECURUS
VT-P/13-E1/E3133684107.510.81420P2 SECURUS

1) Based on recharging an 80 cubic foot tank from 500 to 3000 psig.
2) Compressor capacity referenced to standard inlet conditions.
E1= Single phase electric, 230 VAC/60Hz.E3= Three Phase Electric, 208/230/460 VAC/60Hz.
Other voltages available on request.
Dimensions and weights are approximate and are subject to chance.
