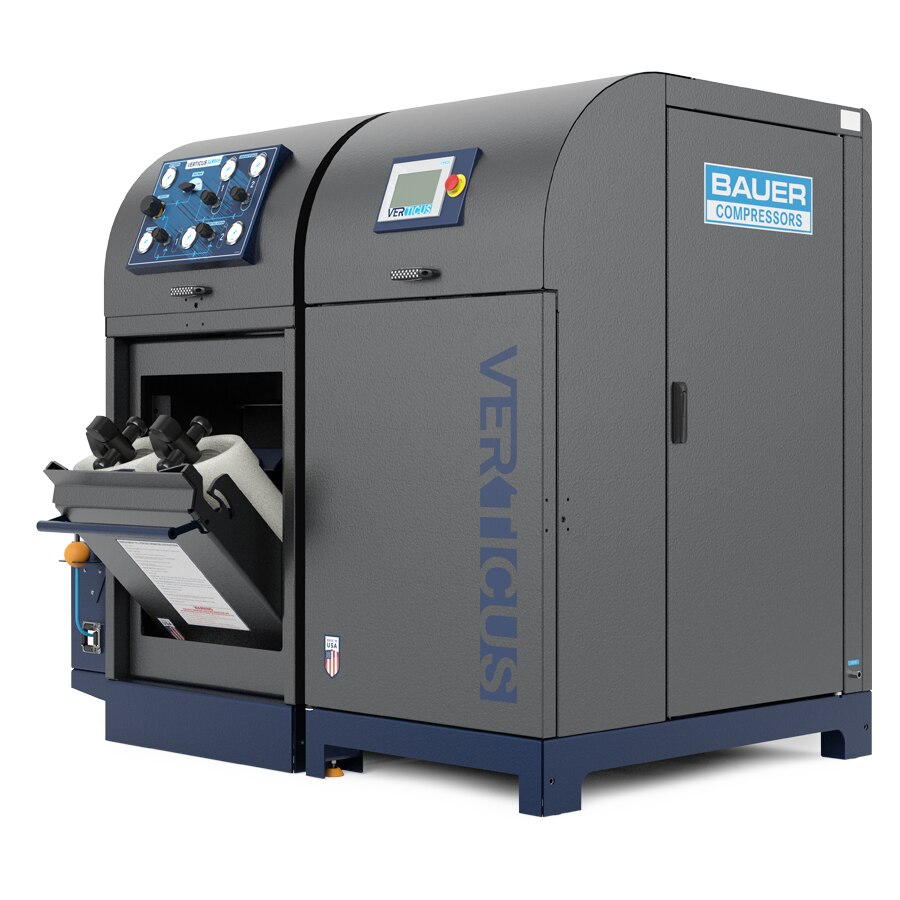

BAUER VERTICUS PLUS | VT-P-5H-E1 | Single Phase | 6000PSI
3 AND 4-STAGE MULTI-FUNCTIONAL HIGH PRESSURE BREATHING AIR COMPRESSORS
The same package amenities found in the VERTICUS high pressure breathing air compressor system, plus a free standing aesthetically pleasing Multi-functional fill station module are combined to create the BAUER VERTICUS PLUS. Bauer’s performance proven CFS5.5-2S NFPA compliant containment fill station; two (2) bank dual function cascade controls; integral air storage rack with two (2) UN code air storage cylinders; 3-way selector valve to select either air from the compressor or on-board air storage system all come together creating the ultimate fill station. Install the two (2) modules side by side as an All-In-One configuration or apart based on the installation site specifics. Flexibility is the key, look to BAUER to unlock the possibilities.BAUER VERTICUS PLUS; VT-P-5H-E1; 6000PSI; Single Phase; 5 SCFM; 5HP; 3.7KW
STANDARD SCOPE OF SUPPLY - COMPRESSOR MODULE:
- BAUER breathing air purification system with SECURUS
- BAUER PLC based controller with 7” color HMI touchscreen display
- NEMA 4 rated electrical enclosure with UL® listed control panel
- Compressor low oil pressure and high temperature safety shutdowns
- Emergency stop push button and automatic start/stop control
- Zero loss automatic condensate drain system with non-corrosiveVcondensate reservoir and integrated float sensor and automatic “Full” indication and compressor shutdown
- Interstage pressure gauges (locally mounted)
- Vertically hinged front operations panel and lift-off side maintenance access doors
- Inlet filter maintenance indicator
- Unique hinged front operations panel
- Dual function cascade controls
- Two (2) UN code stamped air cylinders installed in an integral rack
- 3-way selector valve
- NFPA 1901 2016 edition compliant 2 position containment fill station accommodates SCBA or SCUBA cylinders up to 31” overall length
- Aestetically pleasing cabinetry
- Will work with any brand compressor
- Packaged together
SYSTEM FOOTPRINT
VERTICUS COMPRESSOR MODULE:
DIMENSIONS L X W X H inches (mm)
- 55” x 35” x 70” (1397mm x 737mm x 1778mm)
FILL STATION MODULE:
DIMENSIONS L X W X H inches (mm)
- 35” x 37” x 70” (737mm x 940mm x 1778mm)
WEIGHT pounds (kg)
- 1200 - 1600 lb (544 - 726 kg)
