BAUER VERTICUS | VAC5H-E1 | Single Phase | 6000PSI
3, 4 AND 5-STAGE ENCLOSED HIGH PRESSURE BREATHING AIR COMPRESSORS

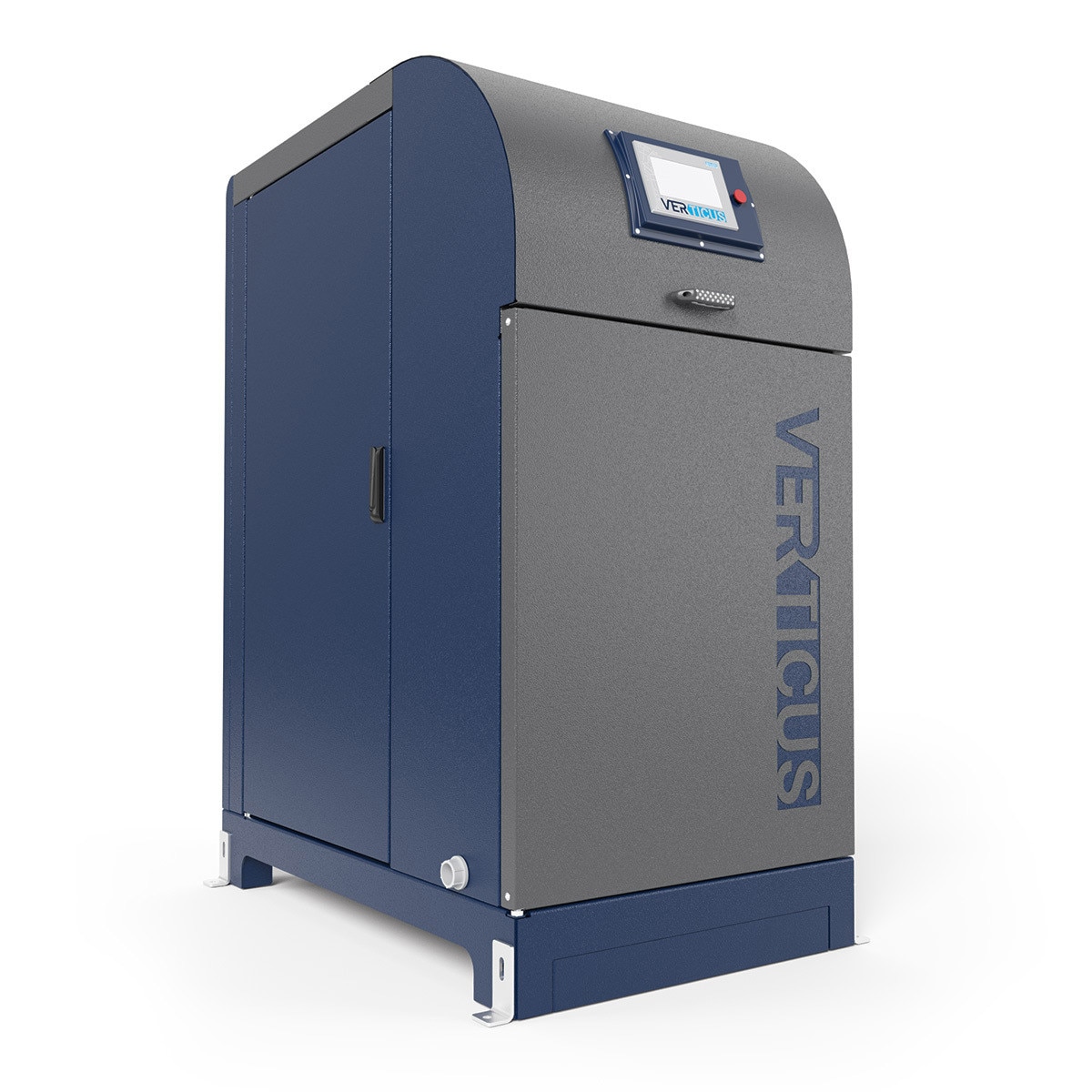

The days of “Breadbox” designed compressor packages are over! Step up to the BAUER VERTICUS. The updated sound attenuated cabinet is equipped with a unique aesthetically pleasing horizontally hinged, and gas shock supported, operations panel, assuring direct and easy access to the drive belts. Vertically hinged and lift-off side maintenance access doors incorporating fast pin technology make removal of the doors a snap – no hand tools are required! The rear panel incorporates integral handles and tabbed lift off design. The front vertically hinged access door is affixed with a hex keyed latch to eliminate the accidental opening of the door while the system is operating. Sound attenuation has been incorporated on every possible panel to provide a nice and quiet operating level of approximately 72 dB (within one-meter). One package size accommodates BAUER high pressure aircooled compressors from 5 to 20 Hp motors. Our new, larger, 7” HMI enhances monitoring of system functions.
BAUER VERTICUS; VAC5H-E1; 6000PSI; Single Phase; 5 SCFM; 5HP; 3.7KW
STANDARD SCOPE OF SUPPLY:
- BAUER breathing air purification system with SECURUS
- BAUER PLC based controller with 7” color HMI touchscreen display
- NEMA 4 rated electrical enclosure with UL® listed control panel
- Compressor low oil pressure and high temperature safety shutdowns
- Emergency stop push button and automatic start/stop control
- Zero loss automatic condensate drain system with non-corrosive condensate reservoir and integrated float sensor and automatic "Full” indication and compressor shutdown
- Interstage pressure gauges (locally mounted)
- Vertically hinged front operations panel and lift-off side maintenance access doors
- Inlet filter maintenance indicator
- Unique hinged front operations panel
SYSTEM FOOTPRINT:
VERTICUS:
VAC5 - VAC26
DIMENSIONS L X W X H inches (mm)
- 55” x 35” x 70” (1397mm x 737mm x 1778mm)
WEIGHT pounds (kg)
- 1000 - 1400 lb (453.6 - 635 kg)
<!-- Technical Data (Product Details Page) -->
<div class="row"style="margin-top: 15px;">
<div class="col-md-6" style="margin-bottom: 10px;">
<div style="float:left; text-transform: uppercase; background-color: #012E58; color: #FFF; padding: 15px 15px 15px 15px; margin-left: 15px;">
VERTICUS<sup>™</sup>
<!-- <sup>®</sup>-->
<!-- <Mahad Change line ABOVE>-->
</div>
<div style="float:left; text-transform: uppercase; color: #01AEF0; padding: 15px 15px 15px 15px; margin-left: 5px;">
Technical Data
</div>
</div>
<div class="col-md-6">
<div style="float:right; text-align: right;">
<img src="https://1208945-sb1.app.netsuite.com/core/media/media.nl?id=7150&c=1208945_SB1&h=78297f4b90a204d9f006&fcts=20200308214651&whence="/>
</div>
</div>
</div>
<div class="row" style="margin-top: 5px;">
<div class="col-md-12">
<table class="table table-bordered table-striped">
<thead>
<tr style="background-color: #012C56; color: #FFF;">
<th scope="col" style="text-align: center; color: #FFF;">Model</th>
<th scope="col" colspan="2" style="text-align: center; color: #FFF;">Charging Rate<sup>1</sup></th>
<th scope="col" style="text-align: center; color: #FFF;">Number of Stages</th>
<th scope="col" colspan="2" style="text-align: center; color: #FFF;">Motor</th>
<th scope="col" style="text-align: center; color: #FFF;">FAD<sup>2</sup></th>
<th scope="col" style="text-align: center; color: #FFF;">RPM</th>
<th scope="col" style="text-align: center; color: #FFF;">Purification System</th>
</tr>
</thead>
<tbody>
<tr style="background-color: #D1D2D4; color: #000;">
<td style="text-align: center;"> </td>
<td style="text-align: center;">SCFM</td>
<td style="text-align: center;">L/MIn</td>
<td style="text-align: center;"> </td>
<td style="text-align: center;">HP</td>
<td style="text-align: center;">KW</td>
<td colspan="3" style="text-align: center;"> </td>
</tr>
<tr>
<!-- <Mahad Change line BELOW>-->
<td colspan="9" style="text-transform: uppercase; background-color: #00ADEF; color: #FFF;">5000 PSIG (345 Bar)</th>
</tr>
<!-- <Mahad Change line BELOW>-->
<tr>
<td>VAC8-E1/E3</td>
<td>8.4</td>
<td>238</td>
<td>3</td>
<td>7.5</td>
<td>5.6</td>
<td>7</td>
<td>1250</td>
<td>P5 SECURUS</td>
</tr>
<tr>
<td>VAC20-E3</td>
<td>21</td>
<td>595</td>
<td>4</td>
<td>15</td>
<td>11</td>
<td>17.5</td>
<td>1300</td>
<td>P5 SECURUS</td>
</tr>
<tr>
<td>VAC23-E3</td>
<td>26.4</td>
<td>748</td>
<td>4</td>
<td>20</td>
<td>15</td>
<td>22</td>
<td>1350</td>
<td>P5 SECURUS</td>
</tr>
<tr>
<td>VAC42-E3<sup>³</td>
<td>42</td>
<td>1190</td>
<td>4</td>
<td>30</td>
<td>22</td>
<td>35</td>
<td>1300</td>
<td>P5 SECURUS </td>
</tr>
<tr>
<!-- <Mahad Change line BELOW>-->
<td colspan="9" style="text-transform: uppercase; background-color: #00ADEF; color: #FFF;">6000 PSIG (414 Bar)</th>
</tr>
<tr>
<td>VAC4-E1/E3</td>
<td>5</td>
<td>142</td>
<td>3</td>
<td>5</td>
<td>3.7</td>
<td>4</td>
<td>1050</td>
<td>P2 SECURUS</td>
</tr>
<tr>
<td>VAC10-E1/E3</td>
<td>9.7</td>
<td>275</td>
<td>4</td>
<td>7.5</td>
<td>5.6</td>
<td>8.1</td>
<td>1180</td>
<td>P2 SECURUS</td>
</tr>
<tr>
<td>VAC13-E1/E3</td>
<td>13</td>
<td>368</td>
<td>4</td>
<td>10</td>
<td>7.5</td>
<td>10.8</td>
<td>1420</td>
<td>P2 SECURUS</td>
</tr>
<tr>
<td>VAC18-E3</td>
<td>18</td>
<td>510</td>
<td>4</td>
<td>15</td>
<td>11</td>
<td>15</td>
<td>1325</td>
<td>P5 SECURUS</td>
</tr>
<tr>
<td>VAC25-E3</td>
<td>25.2</td>
<td>714</td>
<td>5</td>
<td>20</td>
<td>15</td>
<td>21</td>
<td>1300</td>
<td>P5 SECURUS</td>
</tr>
<tr>
<td>VAC35-E3<sup>³</td>
<td>35.9</td>
<td>1017</td>
<td>4</td>
<td>30</td>
<td>22</td>
<td>29.8</td>
<td>1200</td>
<td>P10 SECURUS </td>
</tr>
<tr>
</tbody>
</table>
<p>
1) Based on recharging an 80 cubic foot tank from 500 to 3000 psig.<br/>
2) Compressor capacity referenced to standard inlet conditions.<br/>
E1= Single phase electric, 230 VAC/60Hz.E3= Three Phase Electric, 208/230/460 VAC/60Hz. Other voltages available on request.
Dimensions and weights are approximate and are subject to chance.
</p>
