CFS5.5-2S-7K | Bauer Compressors | 3-Position 5.5 Containment Fill Station
BAUER COMPRESSORS CONTAINMENT FILL STATIONS FOR AIR AND OXYGEN

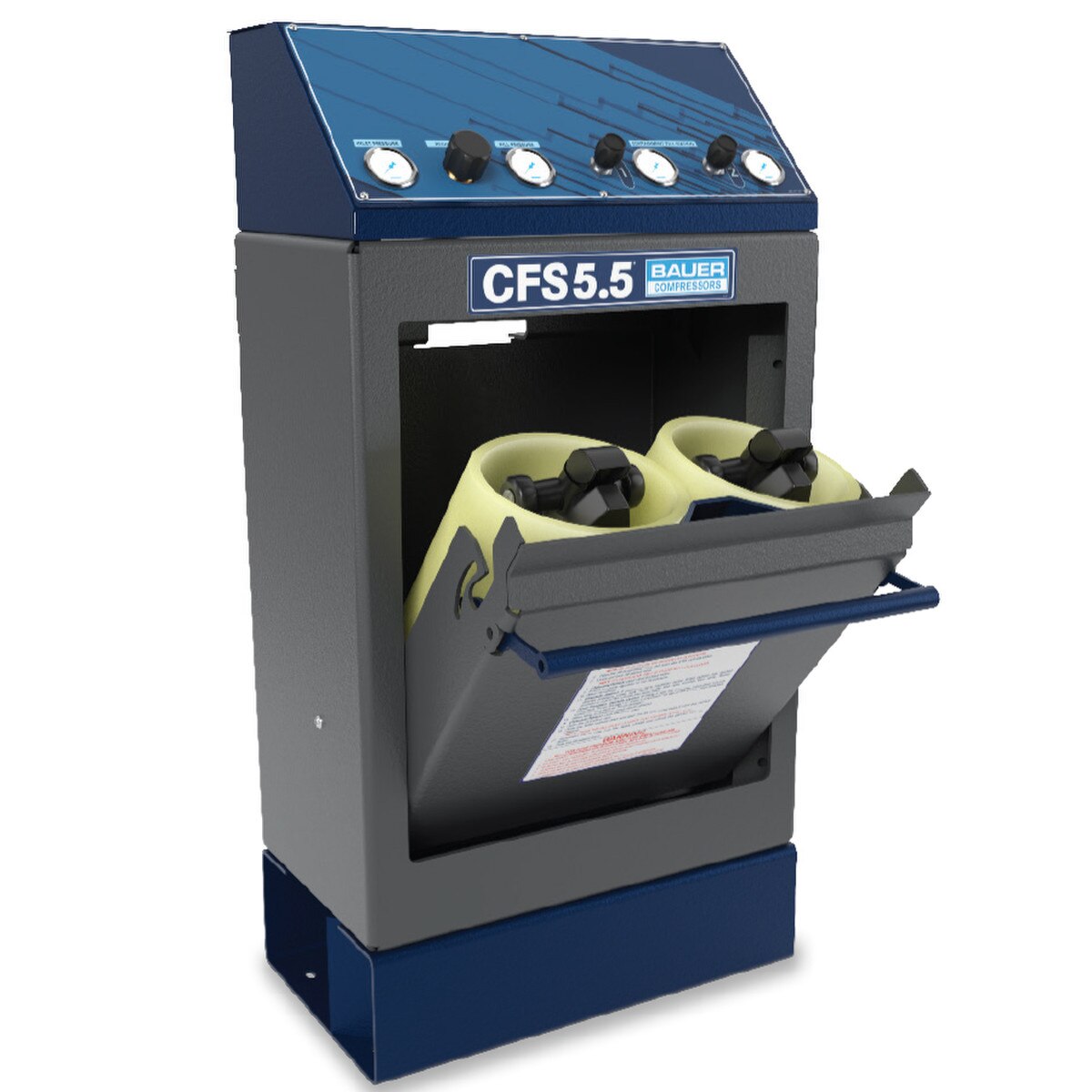

Choose from a complete line of containment fill stations suitable for SCBA or SCUBA cylinders. Whether you need a 3-, 2- or single-position fill station, be assured each model was proof tested by an independent lab to safely contain fragments of a ruptured 5500 psi 110 cu. ft. SCBA cylinder at maximum operating pressure in accordance with the 2016 Edition of NFPA 1901. Ask about our custom options to tailor a model to your specific requirements. Shown with Flush Panel.
STANDARD SCOPE OF SUPPLY
- 7000 psi inlet pressure
- Fills 2 SCBA at once
- Complete with cylinder scuff guard, SCBA fill connection, fill hose and bleed valve
- Fill control panel with adjustable regulator, relief valve, manual control valve and pressure gauge for each fill position (“S” version only)
- CFS5.5 “M” versions designed for use with remote air CFS5.5 distribution panel
- Mounting base is standard on “S” version and optional on “M” version
- Convenient door handle actuation
- Bottom venting
- Reduced footprint
