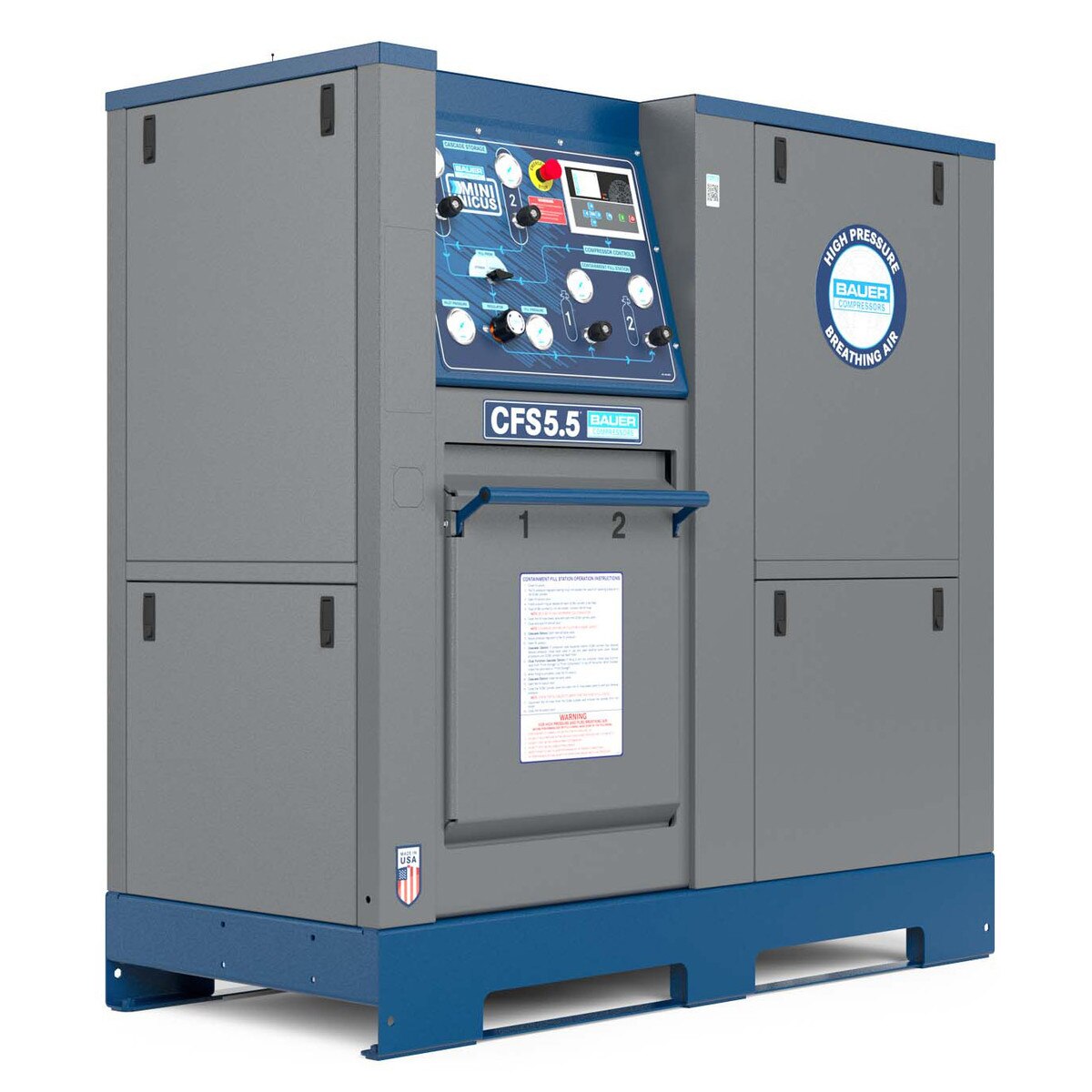

The MINI UNICUS® returns by popular demand, bringing together dependable high pressure performance, proven engineering, and a remarkably compact footprint designed for professionals who demand reliability without sacrificing valuable space. Built on the same uncompromising standards that define the UNICUS® platform, the MINI UNICUS® delivers confidence, consistency, and control in a space saving package that fits seamlessly into today's demanding operational environments.

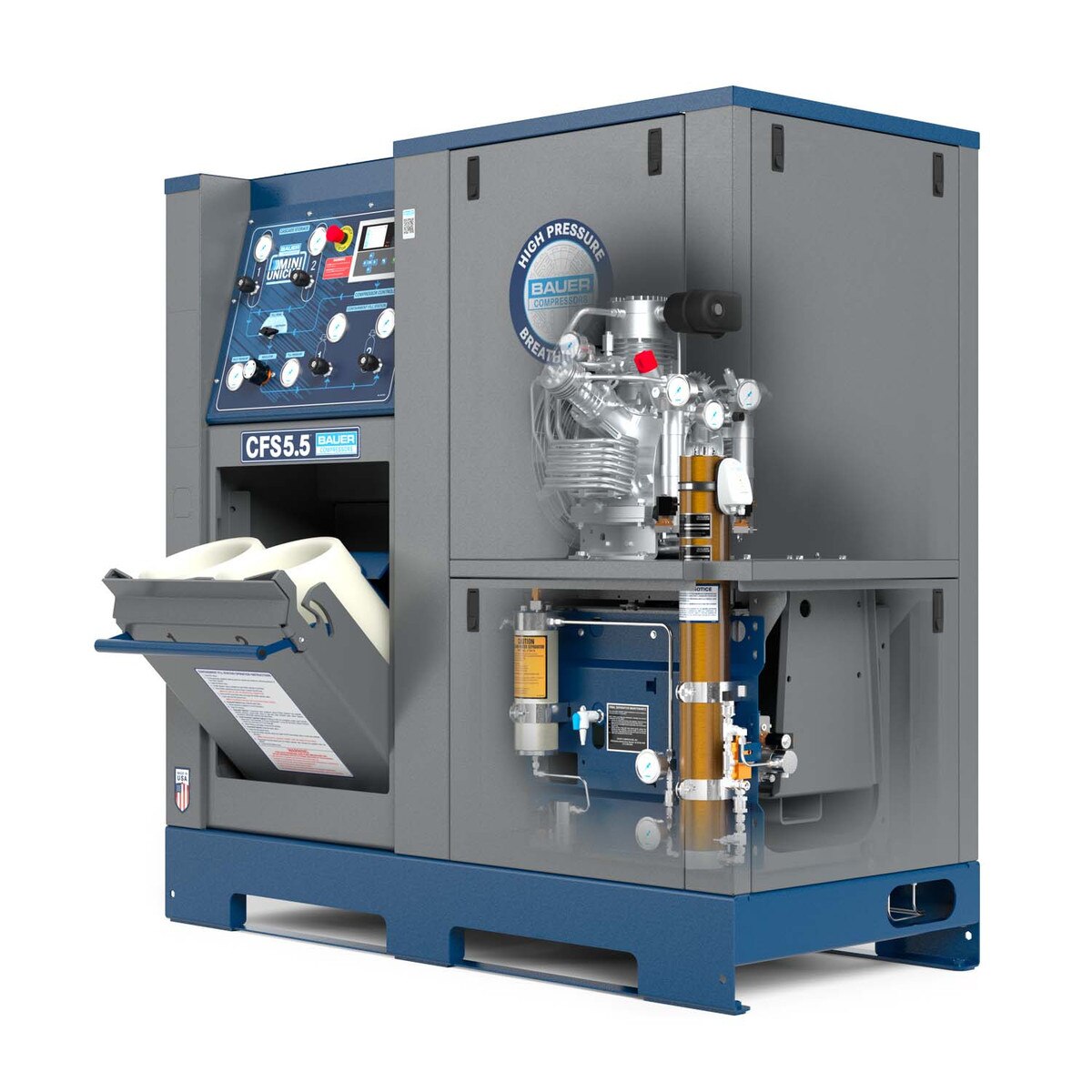

- 9.7 scfm, 6000 psig, 4-Stage Compressor
- E1 = Single Phase Electric, 230 VAC/60 Hz
- 7.5 HP
- BAUER breathing air purification system with B-SECURUS
- BAUER PLC based controller with multicolor display
- NEMA 4 rated electrical enclosure with UL® listed control panel
- Compressor low oil pressure and high temperature safety shutdowns
- Emergency stop push button
- Hinged fill control panel with Lexan laminate air flow/fill schematic
- Priority refill system with storage bypass valve
- Automatic condensate drain system with non-corrosive condensate reservoir and integrated float sensor and automatic “Full” indication
and compressor shutdown

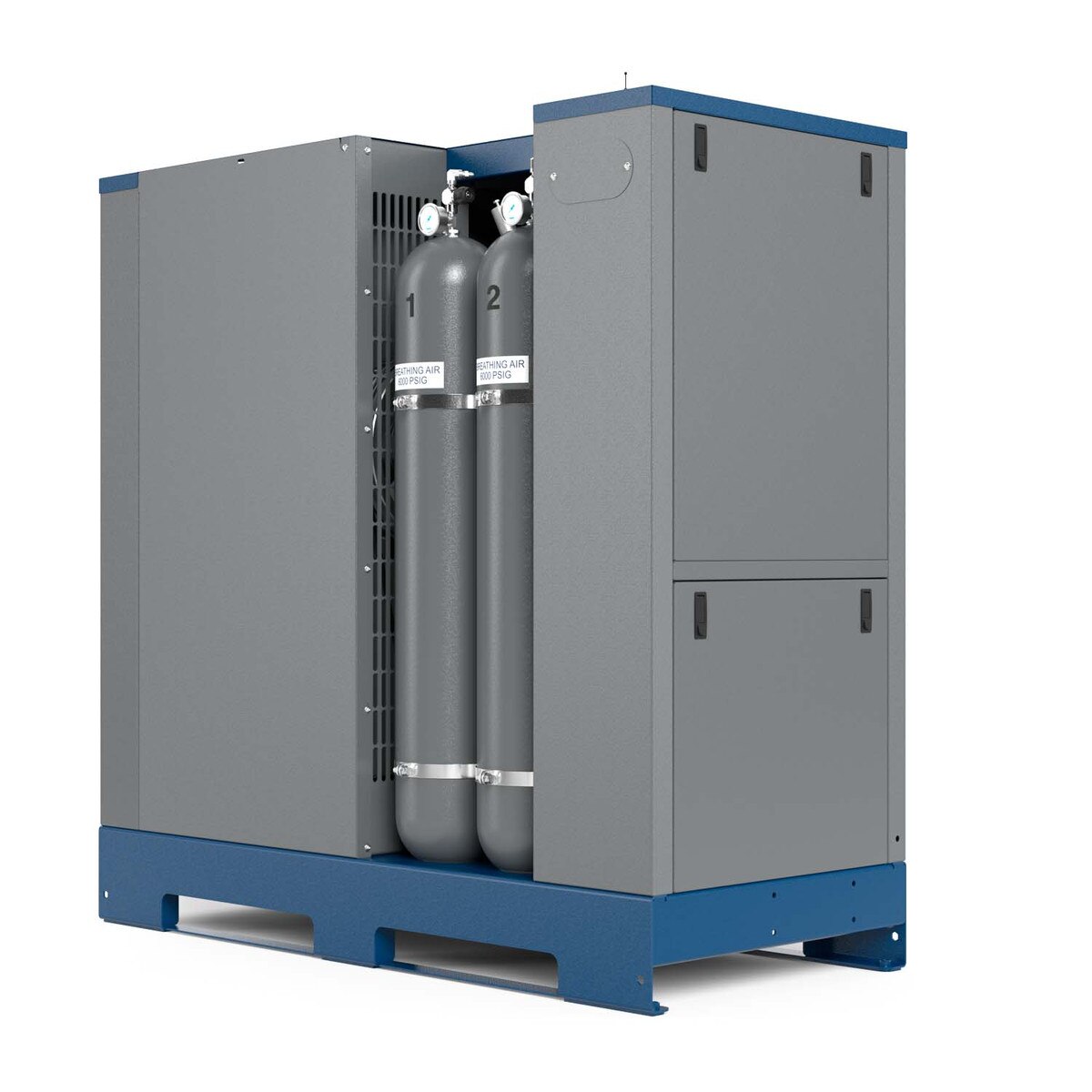

- Two (2) UN code stamped air cylinders installed in an integral rack
- Sound attenuating enclosure with slam-action latches and lift-off type hinges

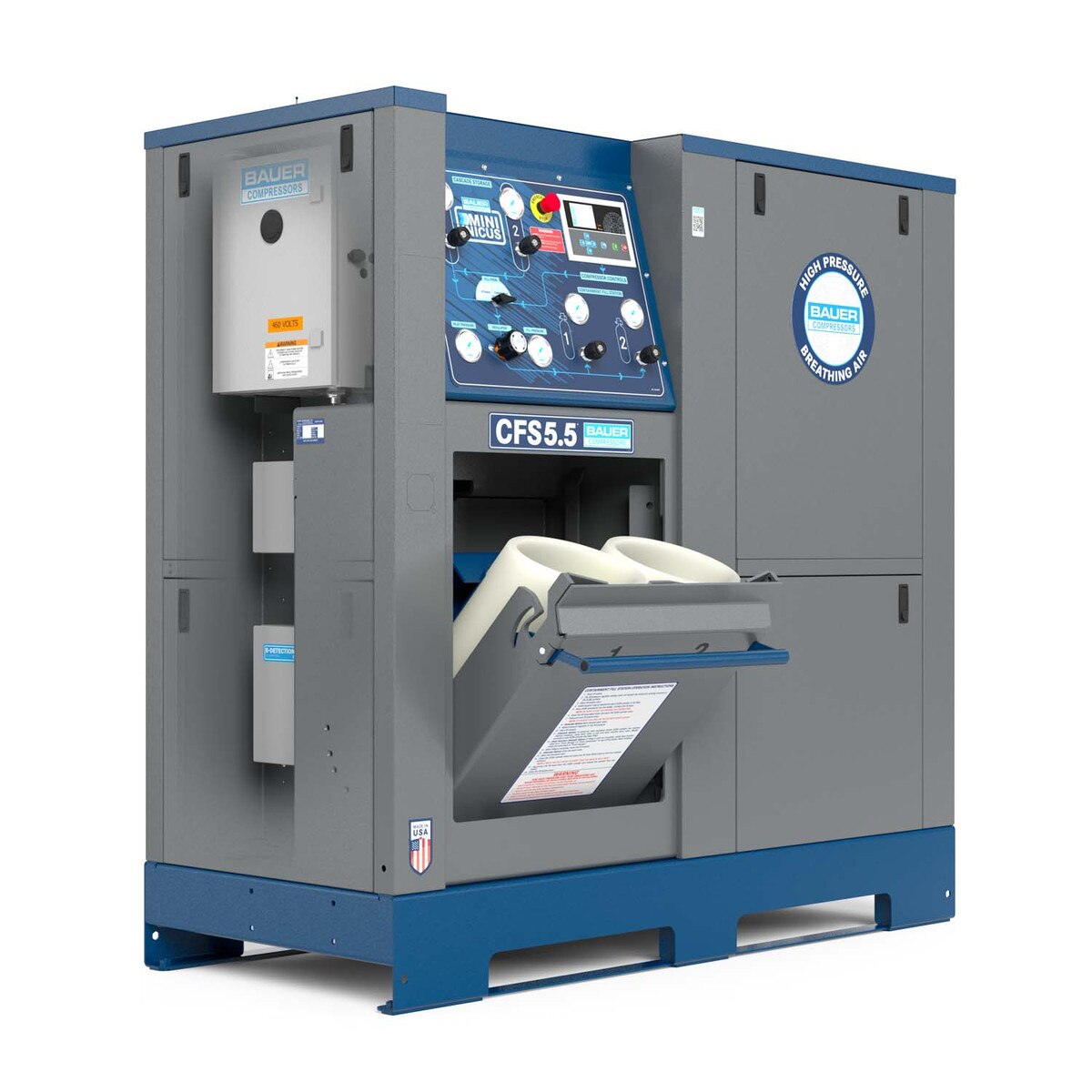

- NFPA 1900: 2024 Compliant Two Position Containment Fill Station accommodates SCBA or SCUBA cylinders up to 31” overall length
- BAUER B-Detection-L CO monitor
- BAUER CONNECT® loT cloud connectivity through the Bauer Fire Solutions™ app. Included gratis for 5-years coincidental with BAUER's 5-year Municipal Warranty
MINI-UNICUS® BAUER Compressor; MINI-UNI10-E1; 6000PSI; Single Phase; 9.7 SCFM; 7.5HP; 5.6KW
STANDARD SCOPE OF SUPPLY:
- BAUER breathing air purification system with B-SECURUS
- BAUER PLC based controller with multicolor display
- NEMA 4 rated electrical enclosure with UL® listed control panel
- Compressor low oil pressure and high temperature safety shutdowns
- Emergency stop push button
- Hinged fill control panel with Lexan laminate air flow/fill schematic
- Priority refill system with storage bypass valve
- Automatic condensate drain system with non-corrosive condensate reservoir and integrated float sensor and automatic “Full” indication
and compressor shutdown - Two (2) UN code stamped air cylinders installed in an integral rack
- Sound attenuating enclosure with slam-action latches and lift-off type hinges
- NFPA 1900: 2024 Compliant Two Position Containment Fill Station accommodates SCBA or SCUBA cylinders up to 31” overall length
- BAUER B-Detection-L CO monitor
- BAUER CONNECT® loT cloud connectivity through the Bauer Fire Solutions™ app. Included gratis for 5-years coincidental with BAUER's 5-year Municipal Warranty
SYSTEM FOOTPRINT:
DIMENSIONS L X W X H inches (mm)
Base Model:
- 72” x 38” x 72” (1829mm x 966mm x 1829mm)

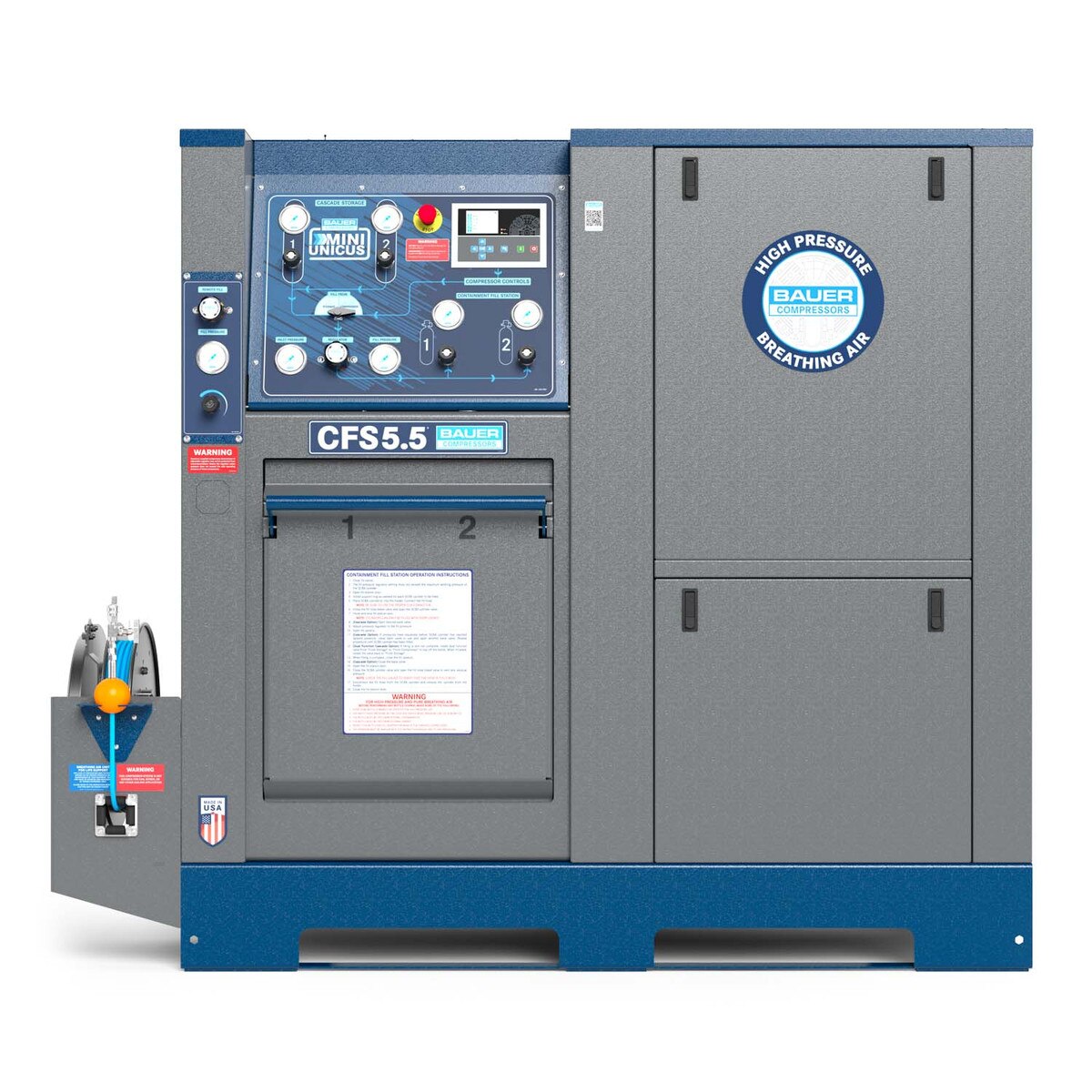

With optional hose reel:
- 84” x 38” x 72” (2134mm x 966mm x 1829mm)
WEIGHT pounds (kg)
Base Model w/ ASME: 2875 lbs (1305 kgs)
With optional hose reel and ASME: 3000 lbs (1361 kgs)
Base Model w/ DOT: 2445 lbs (1110 kgs)
With optional hose reel and DOT: 2570 lbs (1166 kgs)
AVAILABLE ACCESSORIES
(FACTORY INSTALLED):
- Regulated (adjustable) remote fill hose connection to include high pressure hose reel and 100" of 6000 psig rated high pressure hose
- ASME air storage cylinders in lieu of standard UN bottles

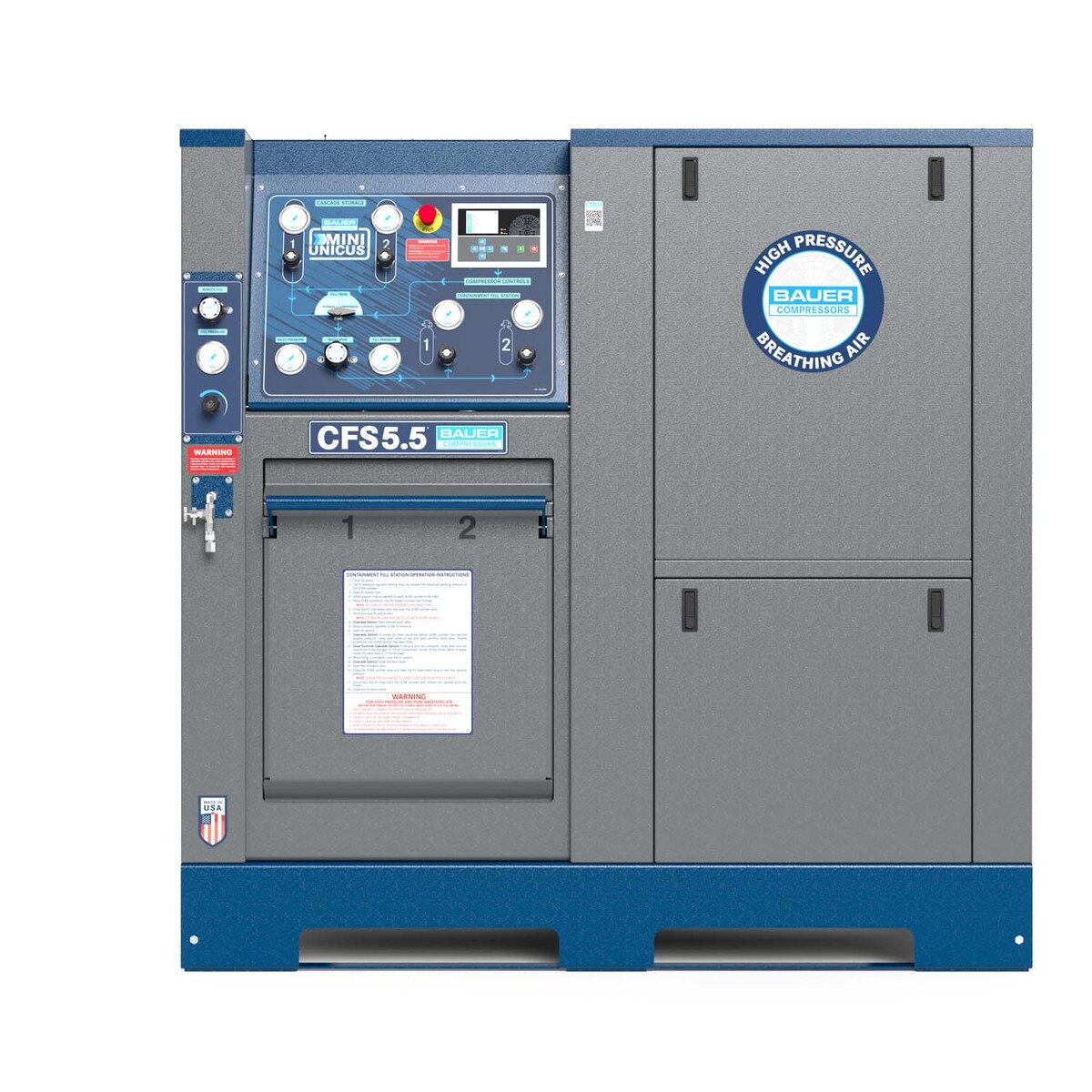

- Regulated (adjustable) panel mounted remote file hose connection
AVAILABLE ACCESSORIES
(NOT INSTALLED):
- CO Calibration Kit (Kit-0837)
AVAILABLE OPTION:
- Fire Edition Paint Scheme
1) Based on recharging an 80 cubic foot tank from 500 to 3000 psig.
2) Compressor capacity referenced to standard inlet conditions.
E1 = Single Phase Electric, 230 VAC/60 Hz
E3 = Three Phase Electric, 230/460 VAC/60 Hz
Other voltages available on request
