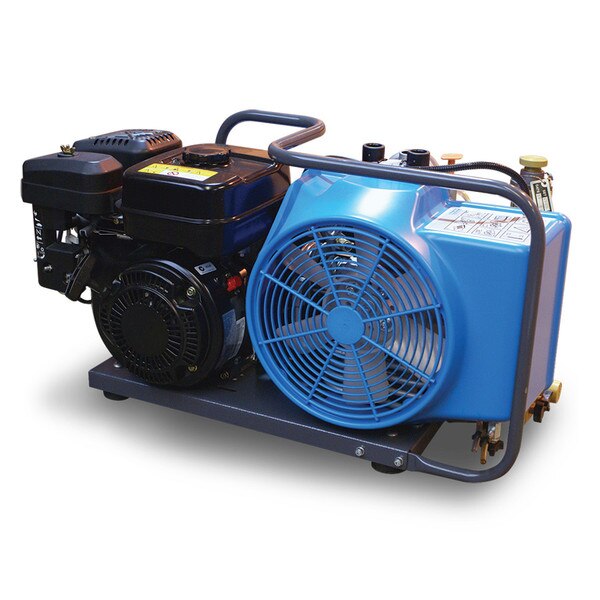

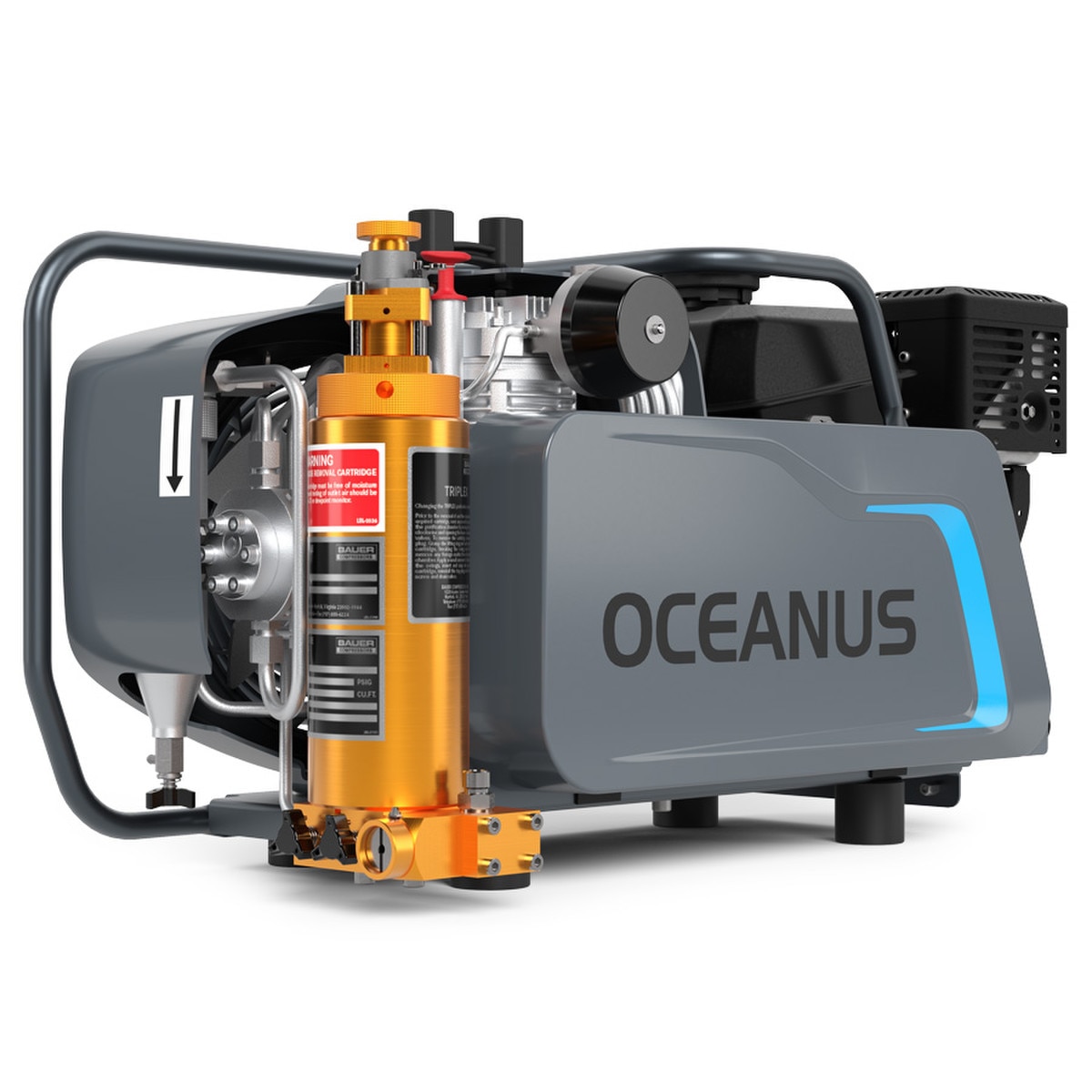

OCEANUS-GK Bauer Portable Dive Compressor

(0) No Reviews yet
$6,916.00
SKU: OCEANUS-GK

3-STAGE HIGH PRESSURE BREATHING AIR 5000PSI COMPRESSORS

JUNIOR II and OCEANUS — include an air purification system and fill hose. These safe and reliable 3-stage compressors are designed for serious sport divers. Available in 1-phase 115/230 VAC and 3-phase 230/460 VAC electric motor, gasoline or diesel engine drives.
STANDARD SCOPE OF SUPPLY
  • BAUER P0 breathing air purification system
  • Belt guard designed to meet OSHA guidelines
  • Inlet filter
  • Vibration isolators
  • High temperature switch (G drives)
  • Five foot fill hose assembly with SCUBA yoke, bleed valve and pressure gauge

OCEANUS MODELS (ADD TO ABOVE)

  • Sturdy, long lasting low pressure oil pump
  • Large oil sump allows shipboard inclination of 30°(20° G drive)
  • Capable of filling/maintaining up to a two cylinder 5000 PSIG UN storage system
  • Corrosion-resistant coolers and stainless steel frame

YACHTING PACKAGE (ADD TO ABOVE)

  • NEMA - 4 electrical box
  • Motor starter
  • Automatic condensate drain with muffler/separator and condensate reservoir
  • Pressure switch
  • Stainless steel fittings

AVAILABLE ACCESSORIES
(FACTORY INSTALLED)

  • Visual CO/Moisture monitor indicator
  • Final pressure switch for gasoline engine
  • Hourmeter/Tachometer (G drive)

SYSTEM FOOTPRINT

JUNIOR II:
DIMENSIONS L x W x H inches (mm)

  • 42” x 19” x 23” (1067mm x 483mm x 584mm)
WEIGHT pounds (kg)
  • 89 - 165 lb (40 - 75 kg)

OCEANUS:
DIMENSIONS L x W x H inches (mm)

  • 32” x 18” x 23” (813mm x 457mm x 584mm)

WEIGHT pounds (kg)

  • 96 - 135 lb (44 - 61 kg)
