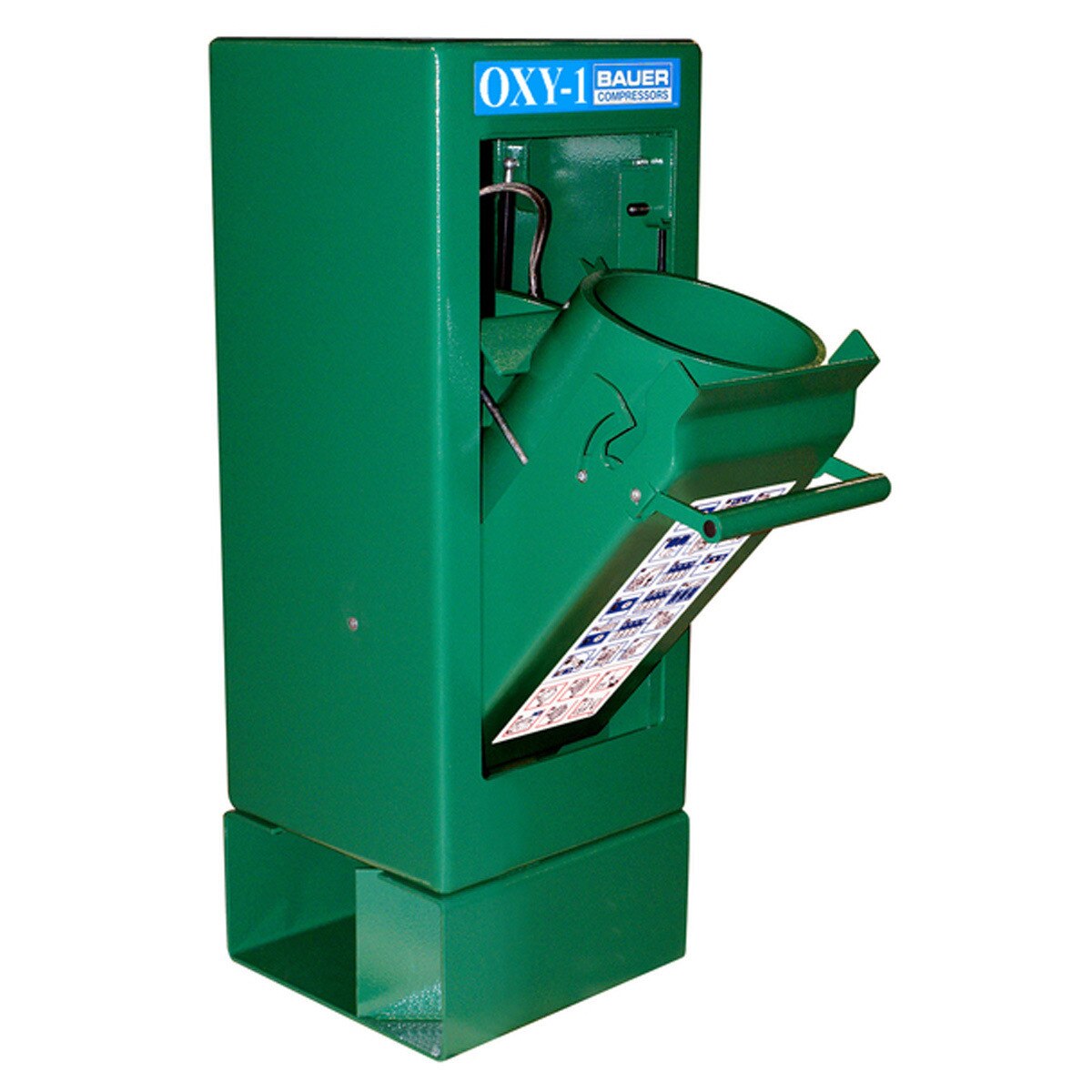

OXY-1M | Bauer Compressors | One Position Oxygen Mobile Containment Fill Station

(0) No Reviews yet
$7,797.00
SKU: OXY-1M

BAUER COMPRESSORS CONTAINMENT FILL STATIONS FOR OXYGEN

Choose from a complete line of Bauer O2 containment fill stations suitable for SCBA or SCUBA cylinders. Whether you need a 2- or single-position fill station, be assured each model was proof tested by an independent lab to safely contain fragments of a ruptured 5500 psi 110 cu. ft. SCBA cylinder at maximum operating pressure in accordance with the 2016 Edition of NFPA 1901. Ask about our custom options to tailor a model to your specific requirements.

STANDARD SCOPE OF SUPPLY
  • Complete with cylinder scuff guard, SCBA fill connection, fill hose and bleed valve
  • Fill control panel with adjustable regulator, relief valve, manual control valve and pressure gauge for each fill position (“S” version only)
  • CFS5.5 “M” versions designed for use with remote air CFS5.5 distribution panel
  • Mounting base is standard on “S” version and optional on “M” version
  • Convenient door handle actuation
  • Bottom venting
  • Reduced footprint

SYSTEM FOOTPRINT
OXY-1S:
DIMENSIONS L X W X H inches (mm)

  • 18” x 21” x 55” (457mm x 533mm x 1397mm)
WEIGHT pounds (kg)
  • 433 lb (196 kg)

OXY-1M:
DIMENSIONS L X W X H inches (mm)

  • 18” x 21” x 39” (457mm x 533mm x 990mm)
WEIGHT pounds (kg)
  • 360 lb (163 kg)

OXY-2S:
DIMENSIONS L X W X H inches (mm)

  • 30” x 21” x 57.25” (762mm x 533mm x 1454.15mm)
WEIGHT pounds (kg)
  • 670 lb (304 kg)

OXY-2M:
DIMENSIONS L X W X H inches (mm)

  • 30” x 21” x 39” (762mm x 533mm x 990mm)
WEIGHT pounds (kg)
  • 550 lb (249 kg)


*All components in Oxygen stream are Oxygen cleaned in compliance with A.S.T.M. Standard G-93. Dimensions and weight are approximate and are subject to change. Images shown with additional accessories.
